If you are thinking of switching from old halogen headlights to LEDs on your car, the Canbus HB3 HB4 HIR2 filter is essential to prevent the vehicle's control unit from "acting up".

Here's a simple explanation of why it's needed and what it does technically.

1. The problem: The "misunderstanding" of the control unit

Modern cars are equipped with a system called Canbus that constantly monitors the integrity of the bulbs.

• A standard HB3 HB4 HIR2 halogen bulb consumes approximately 55W .

• An LED bulb is much more efficient and consumes significantly less (often between 15W and 25W ).

When you install LEDs, the control unit detects a very low current draw and "thinks" that the bulb is burned out or missing.

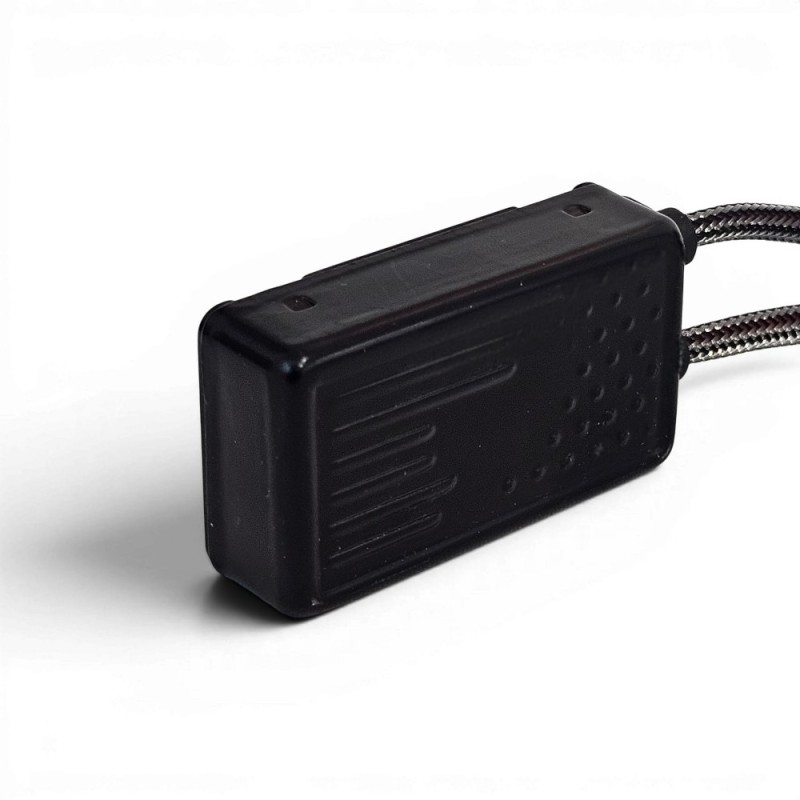

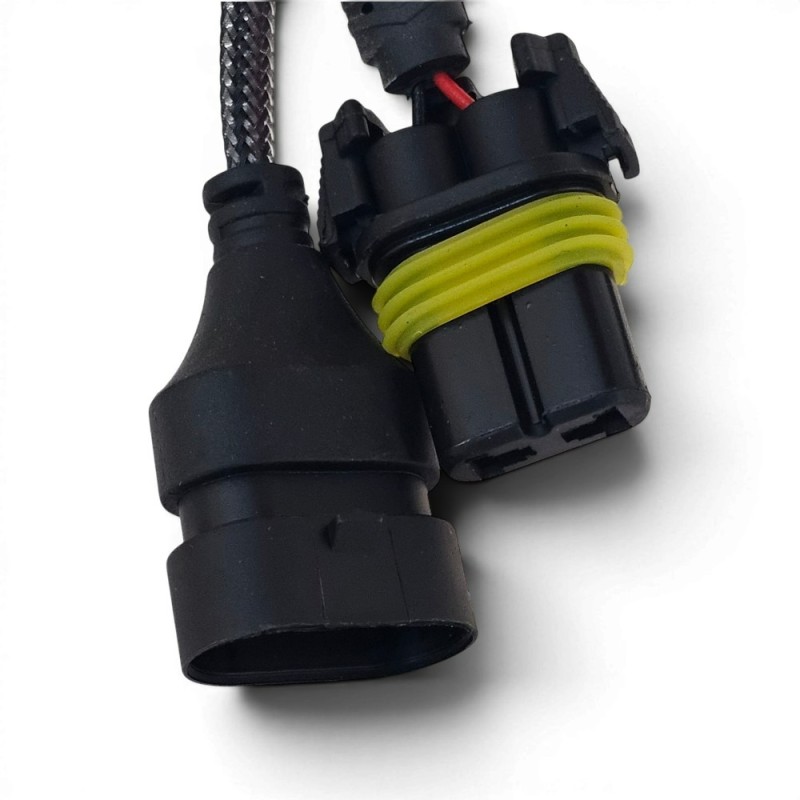

2. What is the filter (or resistor) for?

The Canbus filter acts as a load simulator . Its main task is to bridge the power consumption gap between the LED and the original halogen.

3. What does it actually solve?

Without this filter, you may encounter three main problems:

• Dashboard Error Light: The annoying "faulty light" icon stays on steadily.

• Flickering: LEDs flash rapidly because the control unit is sending small pulses of current to test the circuit, or because it is not receiving correct feedback.

• Auto Power Off: In some cases, the control unit will completely cut off power to the headlight after a few seconds for protection, leaving you in the dark.
