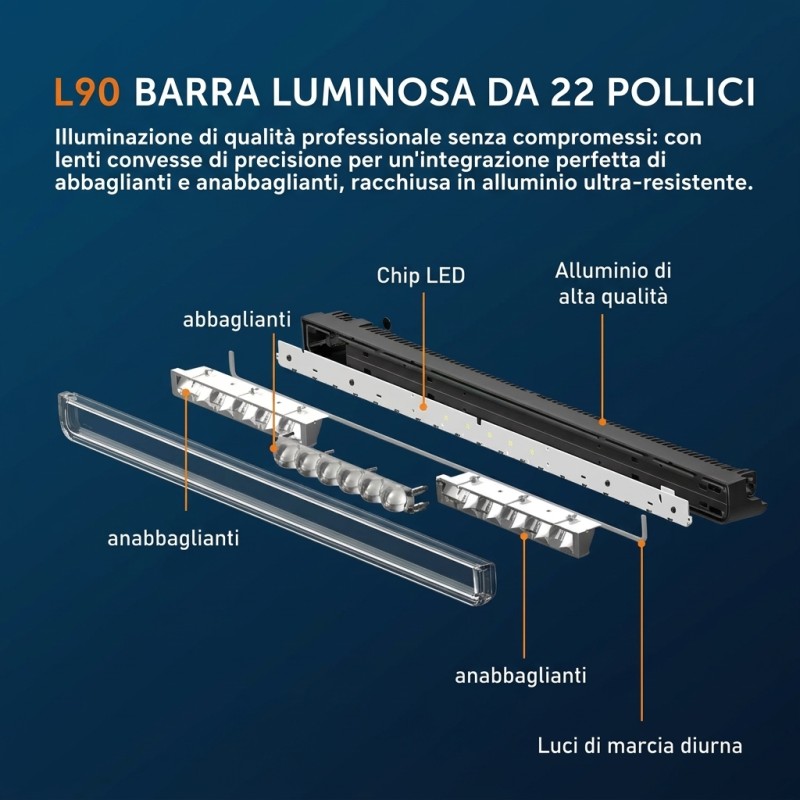

Exploded view of 22-inch LED bar with remote control 90W Low beam High beam Position Approved ECE R148 R149 ECE R10
22 Inch LED Light Bar with Remote Control 90W Low Beam High Beam Position Approved ECE R148 R149 ECE R10
Features 22 Inch LED Bar with Remote Control 90W Low Beam High Beam Position Approved ECE R148 R149 ECE R10

22 Inch LED Bar with Remote Control 90W Low Beam High Beam Approved Position

Product Code: PIM#1_7790
€111.00
Questo prodotto è stato acquistato: 5 times
logo

This 22-inch LED bar (model L90 ) is a high-performance auxiliary lighting solution designed for off-road and commercial vehicles or 4x4s.

  • White light for position and daytime
  • Orange light for clearance or alarm light
  • Low Beam Light
  • Dazzling Light
  • Compact size
  • Extremely high lighting power
  • Wireless Remote Control
  • ECE R148 R149 ECE R10 approved
22 Inch LED Bar with Remote Control 90W Low Beam High Beam Position Approved ECE R148 R149 ECE R10
22 Inch LED Bar with Remote Control 90W Low Beam High Beam Approved Position
Add to Cart
  • Xenonpertutti.com guarantees same-day shipping for all orders received and paid for by 2:00 PM!
  • For every order over €99 (excluding shipping costs), you will automatically benefit from free shipping!
  • NB: In islands or remote locations not served daily by couriers, delivery may take up to 3 working days.

Information

Main Features

  • Lighting Performance:

    • Max Power: 90W (HB - High Beam) and 60W (LB - Low Beam).

    • Brightness: Up to 6320 Lumens (HB) and 4600 Lumens (LB).

    • Visual Range: 1 lux at 450 meters away.

    • Lenses and Optics: Precision convex lenses for the central high beam section and dedicated reflectors for the low beam and parking lights.

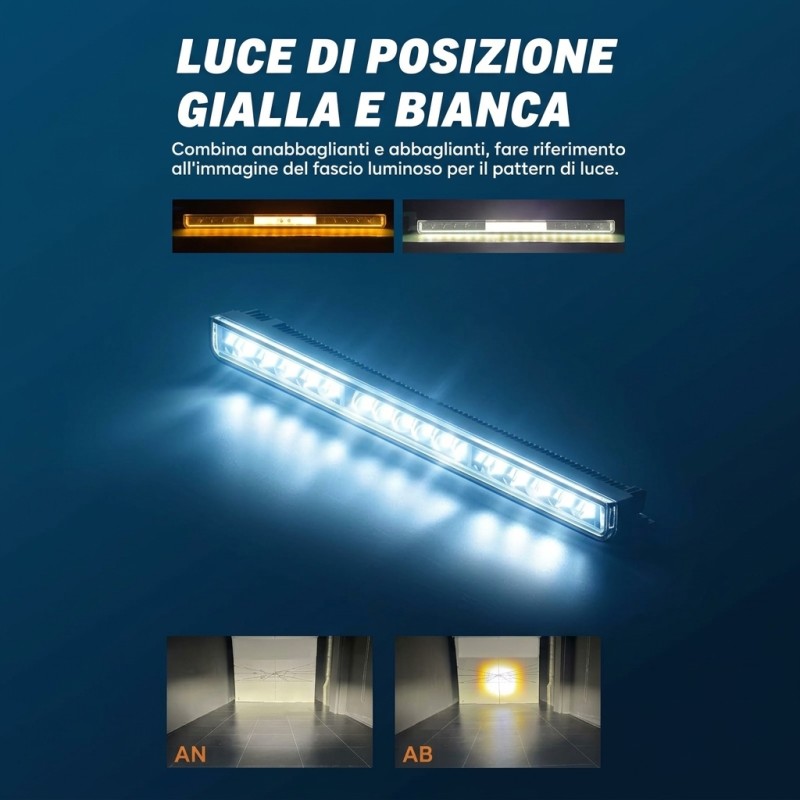

    • Position Light: Integrated with Yellow/Amber or White color modes.

  • Remote Control & Wireless Functions:

    • Includes a wireless keychain remote control with dedicated buttons for:

      • Turning the power on and off (ON/OFF).

      • Quick switching of light modes (Low beam/High beam).

      • Activation of the strobe/emergency flashing functions.

    • Integrated Relay: Simplifies installation by reducing the amount of external wiring required.

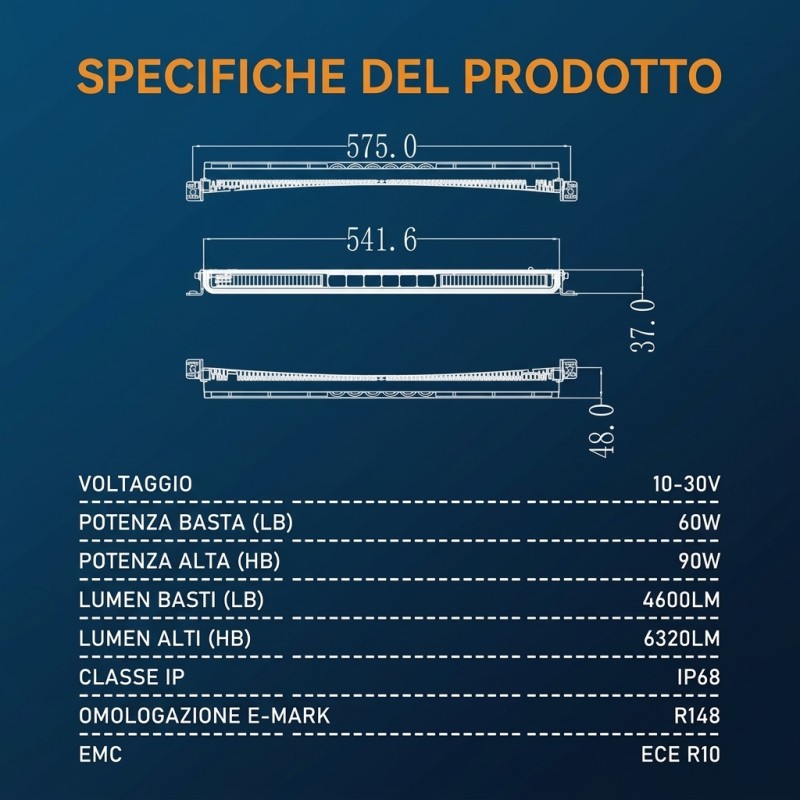

  • Technical Specifications & Dimensions:

    • Operating Voltage: Multi-voltage 10-30V DC (compatible with 12V and 24V systems).

    • Bar Dimensions: Total length of 575.0 mm (main body 541.6 mm), height of 37.0 mm and depth of 48.0 mm.

    • Construction: Reinforced aluminum body with high thermal dissipation.

    • Protection Grade: IP68 , completely waterproof and dustproof for harsh conditions.

  • Approvals and Regulations:

    • E-Mark Approval: Approved according to European regulations ECE R148 , ECE R149 and ECE R10 (Electromagnetic Compatibility EMC).

Technical Features

Light Colour Cool white
Colour Temperature (K) 6000k
Technology LED
Current Type DC
Voltage 9-32v 24V DC
Tipo Veicolo Camion Car
Installation Plug & Play, No Modifications. Direct Connection
Usage Type Luce Anabbagliante e Abbagliante Position and Daytime Running Light
Lifespan + 30,000 Hours
Package Contents 1 Piece
Manufacturer Warranty 2 Years
