Xenon Control Unit 1307329112 GM 13153357 Ballast D1S Headlight Lights Opel Zafira B
Xenon Control Unit 1307329112 GM13153357 Ballast Headlight Lights Opel

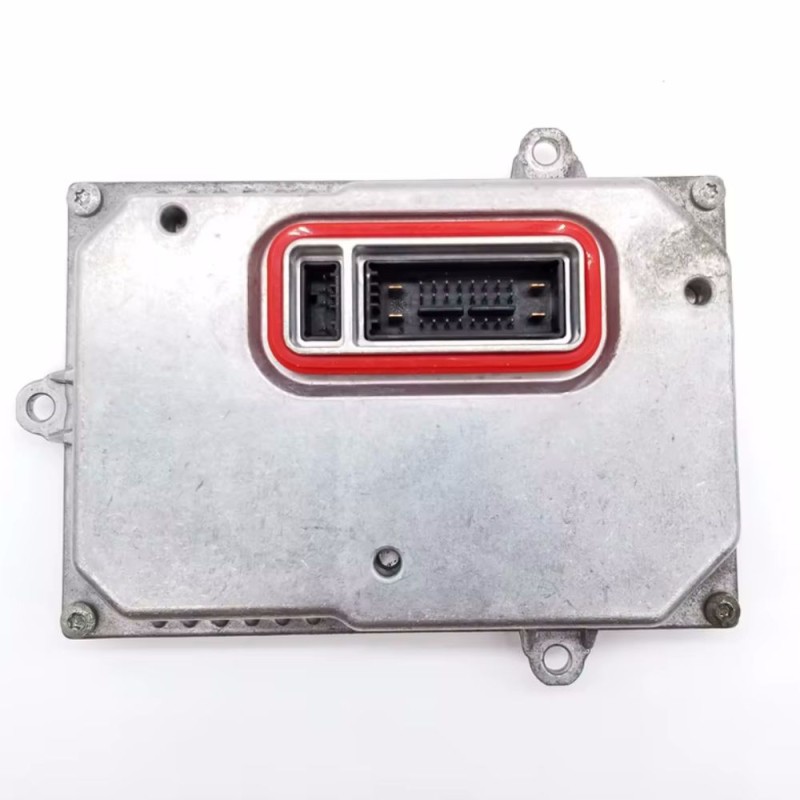

Xenon Control Unit Connector 1307329112 GM13153357 Ballast Headlight Lights Opel
Previous
Next
Xenon Control Unit 1307329112 GM 13153357 Ballast D1S Headlight Lights Opel Zafira B
Xenon Control Unit 1307329112 GM13153357 Ballast Headlight Lights Opel
Xenon Control Unit Connector 1307329112 GM13153357 Ballast Headlight Lights Opel

Xenon Control Unit 1307329112 GM 13153357 Ballast D1S Headlight Lights Opel Zafira B

Product Code: PIM#1_6709
€69.00
Questo prodotto è stato acquistato: 23 times
logo

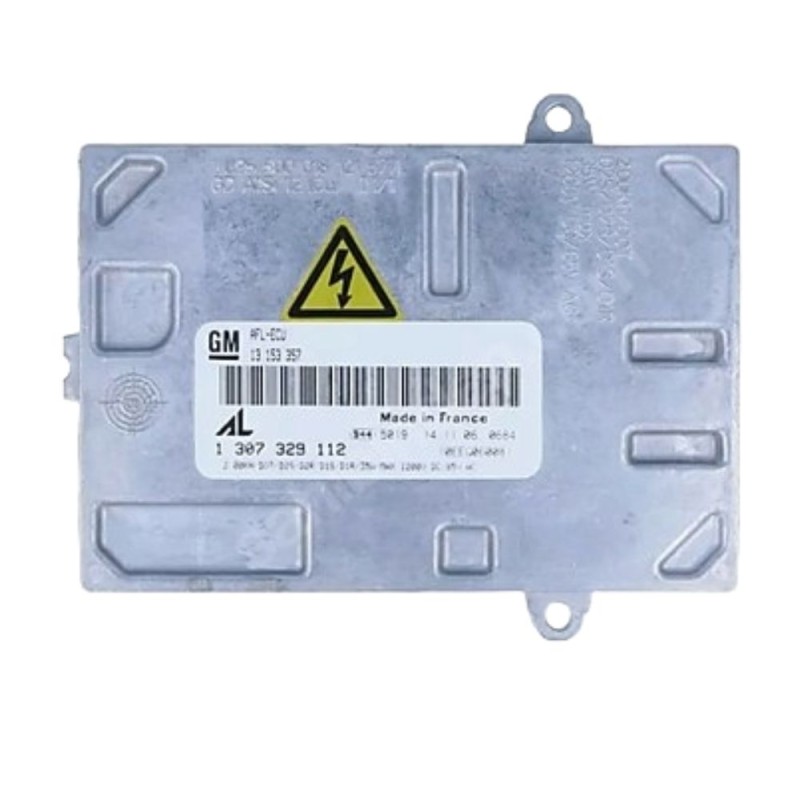

Xenon Control Unit 1307329112 GM13153357 for Ballast d1s 35w Headlight Light Module.

Replace your original xenon control unit with ours without any modifications.

Original Refurbished

The Ballast For Opel Zafira B is replaced directly by unscrewing the 3 screws and disconnecting the old control unit without any Plug and Play modifications and does not require any modifications.

Xenon Control Unit 1307329112 GM 13153357 Ballast D1S Headlight Lights Opel Zafira B
Xenon Control Unit 1307329112 GM 13153357 Ballast D1S Headlight Lights Opel Zafira B
Add to Cart
  • Xenonpertutti.com guarantees same-day shipping for all orders received and paid for by 2:00 PM!
  • For every order over €99 (excluding shipping costs), you will automatically benefit from free shipping!
  • NB: In islands or remote locations not served daily by couriers, delivery may take up to 3 working days.

Information

1307329112 13153357 AFL ECU Xenon Ballast Control Unit

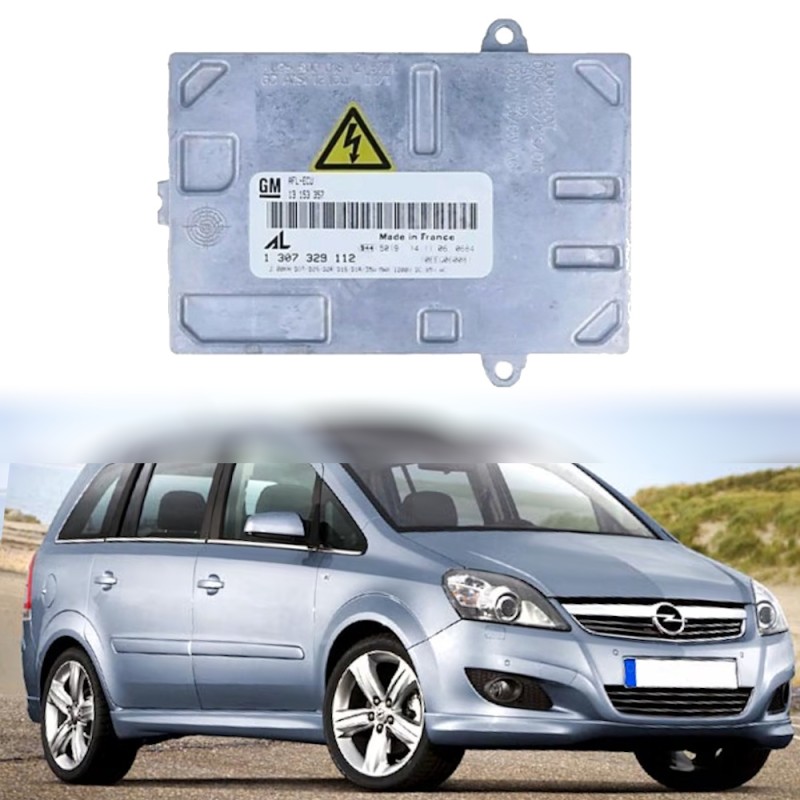

The xenon headlight control unit AL 1307329112 GM 1307329112 is factory fitted to Opel and Vauxhall Zafira B cars with xenon headlights.

The cornering lights are activated when you turn the steering wheel left or right; the xenon light also moves in the same direction.

The most common malfunctions of the faulty GM 13153357 control unit are flickering xenon lights, which go off for no reason, do not stay on, or do not work at all.

If your 35W D1S xenon lights are not working at all, we always recommend checking the HID bulb first.

AL Part Numbers:

  • 1307329112
  • 10EEG060081
  • 13153357
  • 1307329112-01
  • 10EEG112378

Compatible cars:

  • Opel Zafira B 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
  • OPC-VXR

Specifications:

  • 145*115*35mm
  • Net weight: 0.35 kg
  • Input voltage: 9-16V
  • Maximum input current: 6A-8A
  • Instantaneous start voltage: ≥23KV
  • Output voltage waveform: square wave
  • Frequency: 250 ± 10 Hz
  • Output open circuit protection: 1S
  • Output short circuit protection: 1S
  • Input voltage reverse connection protection: 1S
  • Working temperature: -40°C-105°C
  • Service life ≥3000H

Technical Features

Accessory Type Xenon Kit
Vehicle Make OPEL
Technology Xenon
Voltage 12v DC
Tipo Veicolo Car
Power Consumption 35 W per bulb
Bulb Type D1S
Installation Plug & Play, No Modifications. Direct Connection
Feature Canbus, Nessun Errore Nel Computer di Bordo
Installation Position Left Front Headlight Right Front Headlight
Usage Type Original Component Replacement
Operating Temperature -40 °C +120 °C
IP Rating IP54
Material Aluminium and ABS
Package Contents 1 Piece
Manufacturer Warranty 2 Years
Brand AL-Automotive Lighting
Filter EMC radio interference suppression
Original OE/OEM Part Number 10EEG060081 10EEG112378 13153357 1307329112 1307329112-01
Vehicle Model Zafira B (2005 - 2011)
