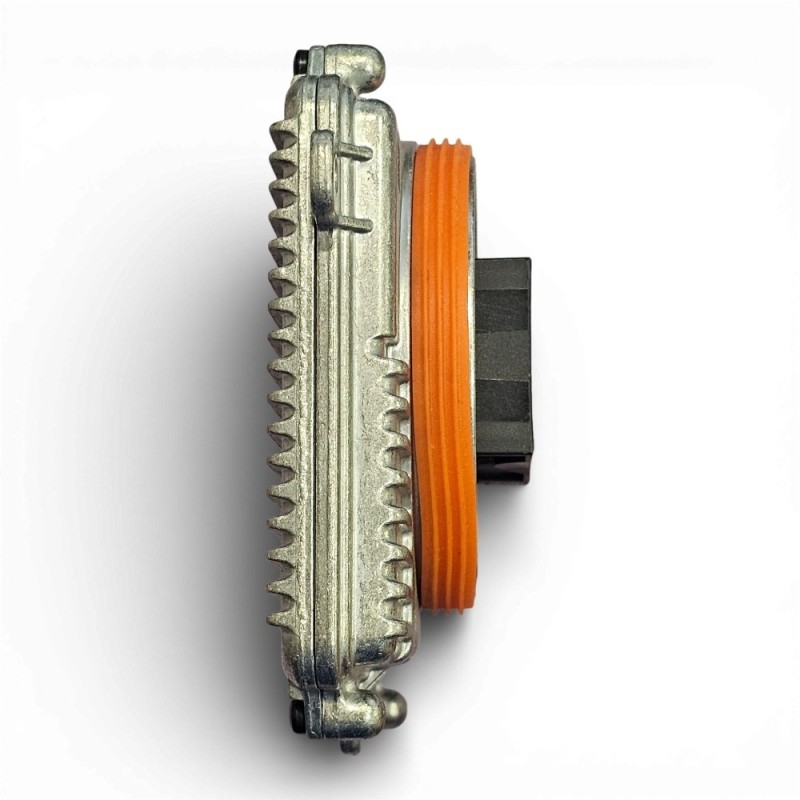

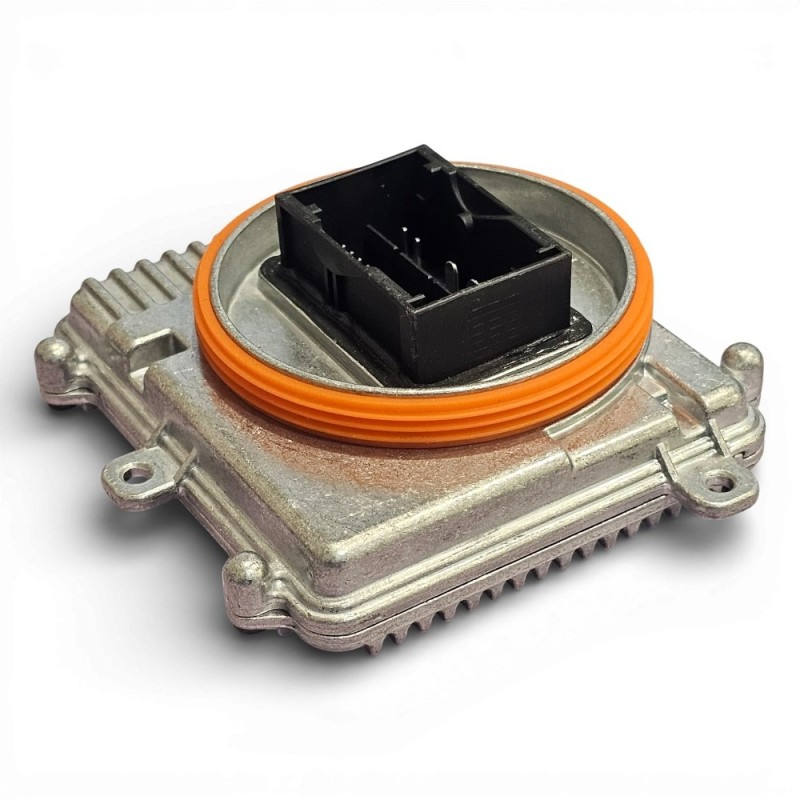

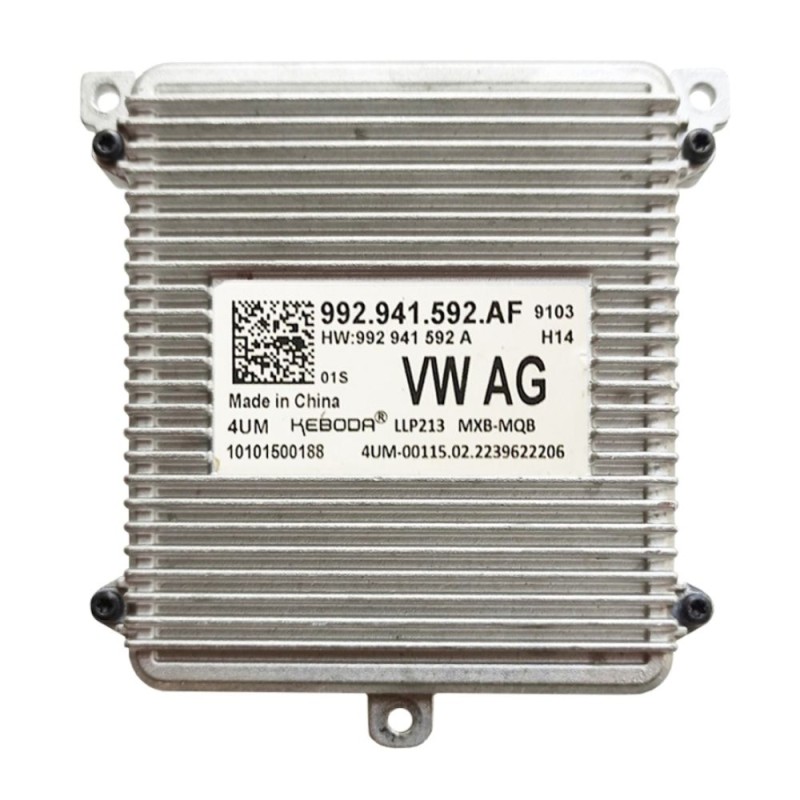

Headlight Control Module 992941592AF VW PASSAT keboda LLP213 MXB-MQB
€98.00
This product has been purchased: 5
Ballast Control Unit 992941592AF 10101500188 LLP321 MIN_MQB control module for LED headlight Wolkswagen Seat Skoda keboda modulo.
Suitable for Volkswagen Seat original OEM control unit.
Direct replacement in just a few minutes. Unscrew the old control unit and screw in the 3 screws of the new one without any modifications.
- Xenonpertutti.com guarantees same-day shipping for all orders received and paid for by 2:00 PM!
- For every order over €99 (excluding shipping costs), you will automatically benefit from free shipping!
- NB: In islands or remote locations not served daily by couriers, delivery may take up to 3 working days.
Information
What is it and what is it for?
The acronym identifies a power module for LED headlights (LED Power Module). Specifically, it is the control unit responsible for managing Matrix LED headlights.
Its main functions are:
- Power Management: Powers the individual LEDs inside the headlight.
- Adaptive functions: Allows the light beam to "cut out" other cars in traffic (selective anti-glare) and follow curves.
- Depth adjustment: Manages the automatic leveling of the beam based on the vehicle load.
- CAN/LIN communication: Receives data from the car's sensors (cameras, steering sensor) to decide how to direct the light in real time.
Technical note: Although the physical form is identical to other control units, the "AF" suffix indicates a specific hardware/software revision. It is essential to follow the code exactly to avoid communication errors on the vehicle's bus network.
Why replace it?
- Replacement is usually necessary for three main reasons:
- Moisture infiltration: This is the most common cause. If the headlight seal fails, condensation seeps down to where the control unit is mounted, oxidizing the contacts.
- Internal electronic fault: The headlight LEDs stop working or work only partially (for example, the daytime running lights work, but the high beams do not).
- Collisions: Even a small bump can damage the connector pins or short out the module's internal circuitry.
VW Ag part numbers:
- 992941592AF
Keboda Part Numbers
- LLP321 MIN_MQB
- 10101500188
LED Headlights Compatible with VW Volkswagen Golf MK8 VIII
- 5H2.941.005.A 5H2941005A LB28934
Compatible cars
- Seat Cupra Formentor 5F 2021 2022 2023 2024
- Seat Cupra Leon 5FA 2020 2021 2022 2023 2024
- VW Volkswagen Golf MK8 VIII 2020 2021 2022 2023 2024
Technical Features
| Accessory Type | Control Unit |
|---|---|
| Vehicle Make | VOLKSWAGEN |
| Technology | LED |
| Current Type | DC |
| Voltage | 12v DC |
| Tipo Veicolo | Car |
| Installation | Plug & Play, No Modifications. Direct Connection |
| Feature | Canbus, Nessun Errore Nel Computer di Bordo |
| Requires Programming | Yes |
| Installation Position | Front Headlight |
| Usage Type | Original Component Replacement |
| Operating Temperature | -40 °C +120 °C |
| Material | Aluminium and ABS |
| Package Contents | 1 Piece |
| Manufacturer Warranty | 2 Years |
| Brand | Keboda TECHNOLOGY |
| Original OE/OEM Part Number | 992941592AF 10101500283 LLP321 MIN_MQB |
| Vehicle Model | Passat B8 (from 2014 onwards) Passat CC (2011 - 2016) |
