What is it and what is it for?

The acronym identifies a power module for LED headlights (LED Power Module). Specifically, it is the control unit responsible for managing Matrix LED headlights.

Its main functions are:

• Power Management: Powers the individual LEDs inside the headlight.
• Adaptive functions: Allows the light beam to "cut out" other cars in traffic (selective anti-glare) and follow curves.
• Depth adjustment: Manages the automatic leveling of the beam based on the vehicle load.
• CAN/LIN communication: Receives data from the car's sensors (cameras, steering sensor) to decide how to direct the light in real time.

Technical note: Although the physical form is identical to other control units, the "AF" suffix indicates a specific hardware/software revision. It is essential to follow the code exactly to avoid communication errors on the vehicle's bus network.

Why replace it?

• Replacement is usually necessary for three main reasons:
• Moisture infiltration: This is the most common cause. If the headlight seal fails, condensation seeps down to where the control unit is mounted, oxidizing the contacts.
• Internal electronic fault: The headlight LEDs stop working or work only partially (for example, the daytime running lights work, but the high beams do not).
• Collisions: Even a small bump can damage the connector pins or short out the module's internal circuitry.

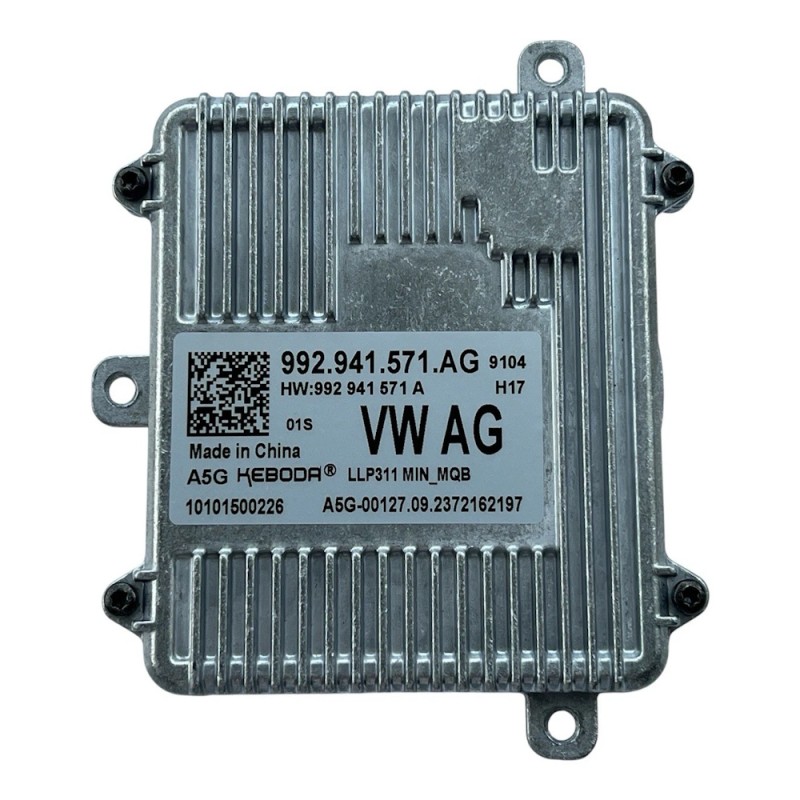

VW Ag part numbers:

• 992941571AG

Keboda Part Numbers

• 10101500226
• LLP311 MIN_MQB

Other compatible item codes

• 992941571AE
• 10101500090
• LLP111 MIN-MQB
• LLP111MIN-MQB
• 992941571AG
• LLP311 MIN_MQB
• 10101500226

Compatible cars

• Seat Arona KJ
• Seat Ateca KH
• Cupra Born 10E
• Cupra Formentor 5F
• Seat Ibiza KJ 2018-
• Seat Leon 5FA 2020-
• Skoda Fabia PJ
• Saloon Sedan Estate Wagon
• Skoda Kamiq NW 2019-
• Skoda Scala NW 2019-
• VW Volkswagen Caddy SB MK4 IV
• VW ID.Buzz ID.Buzz EB
• Volkswagen VW Tiguan CT1 57 MK3 III
• VW Multivan T7 Bus Van
• VW Volkswagen Transporter Caravelle T6.1
