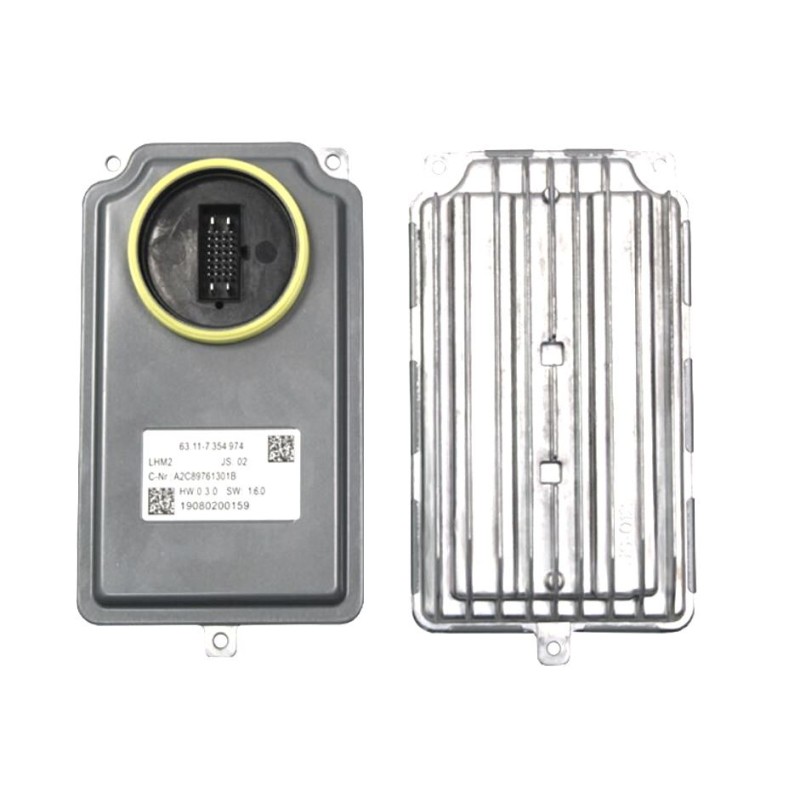

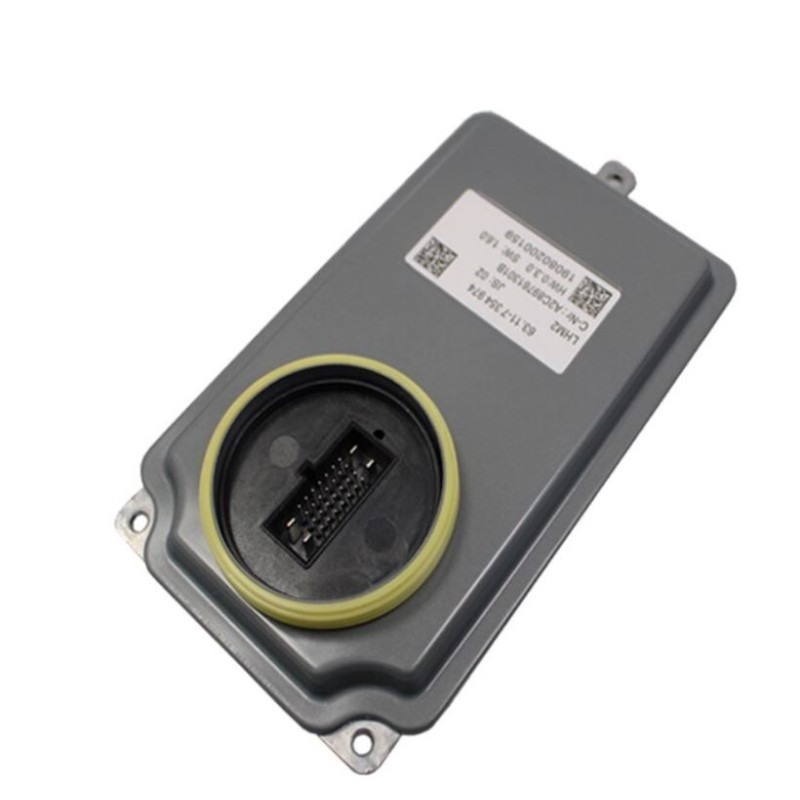

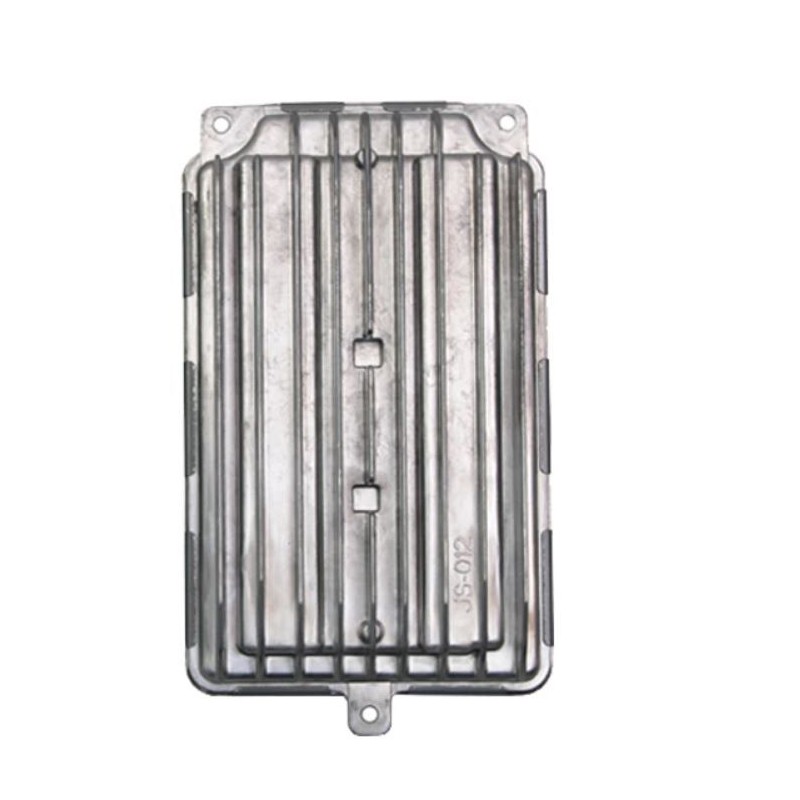

OEM led ballast for car headlights 63117367261 , OEM led ballast for BMW.

Net weight: 0.35 kg
Input voltage: 9-16V.

Maximum input current: 6A-8A
Instantaneous starting voltage: ≥ 23 KV
Output voltage waveform: square wave
Frequency: 250 ± 10Hz
Output open circuit protection: ≤ 1S
Output short circuit protection: ≤ 1S
Input voltage reverse connection protection: ≤ 1S
Operating temperature: -40°C-105°C
Lifespan ≥ 3000 H.

Compatible OEM codes for BMW:

63117395403 (01/07/2014 - 29/10/2015), retroactively interchangeable

63117367261 (01/07/2013 - 08/08/2014), bilaterally interchangeable

63117363868 (09/18 /2012 - 04/12/2015), bilaterally interchangeable

63117360330 (01/08/2012 - 09/12/2013), retrospectively interchangeable

63117324693 (01/07/2012 - 11/09/2012)

The part is compatible with the following vehicles but needs to be programmed on some:

5' F10 (06/2010-10/2016)

5' F10 LC1 (08/2012-10/2016)

5' F11 LCI (08/2012-02/2017)

7' FO1 LCI (05/2011-05/2015)

7' FO2 LCI (05/2011-05/2015).

7' F03 LC!I (01/2012-03/2015)

X5 F15 (08/2012-06/2018)

X5 M F85 (04/2013-06/2018)

X6 F16 (09/2013-05/2019)

X6 M F86 (10/2013-05/2019)

This list is not exhaustive; the AFS module may also fit other car models. Please make sure this part number is the same as your old module. If you have any questions, please contact us and we will get back to you as soon as possible. Thank you.
