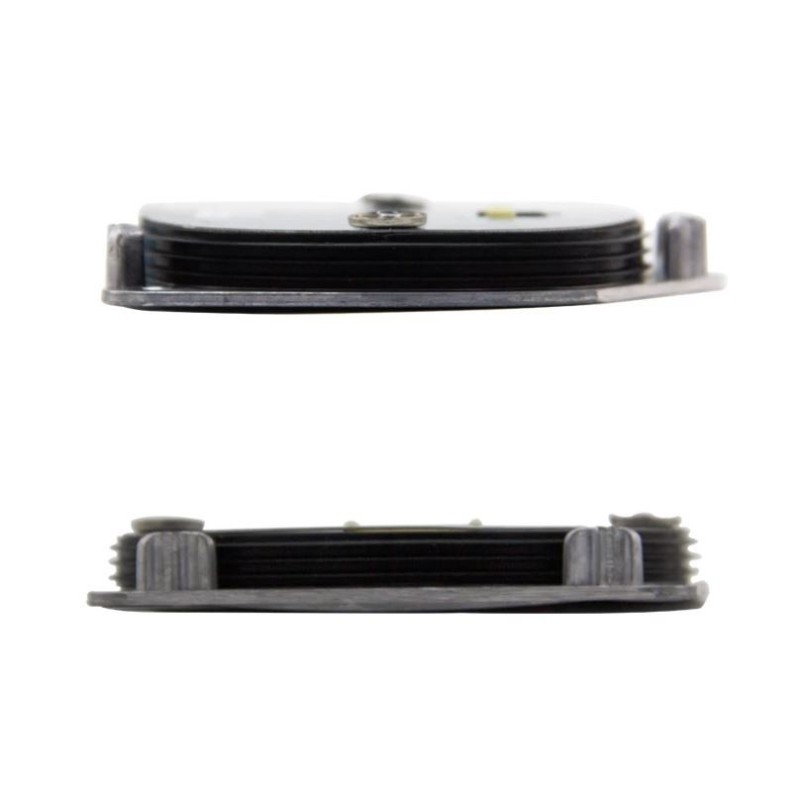

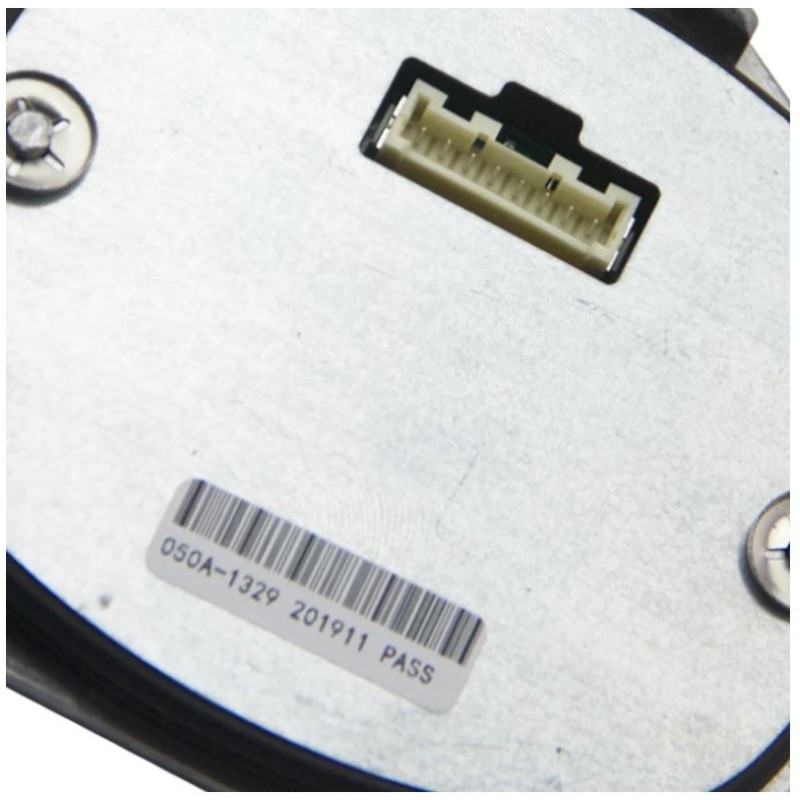

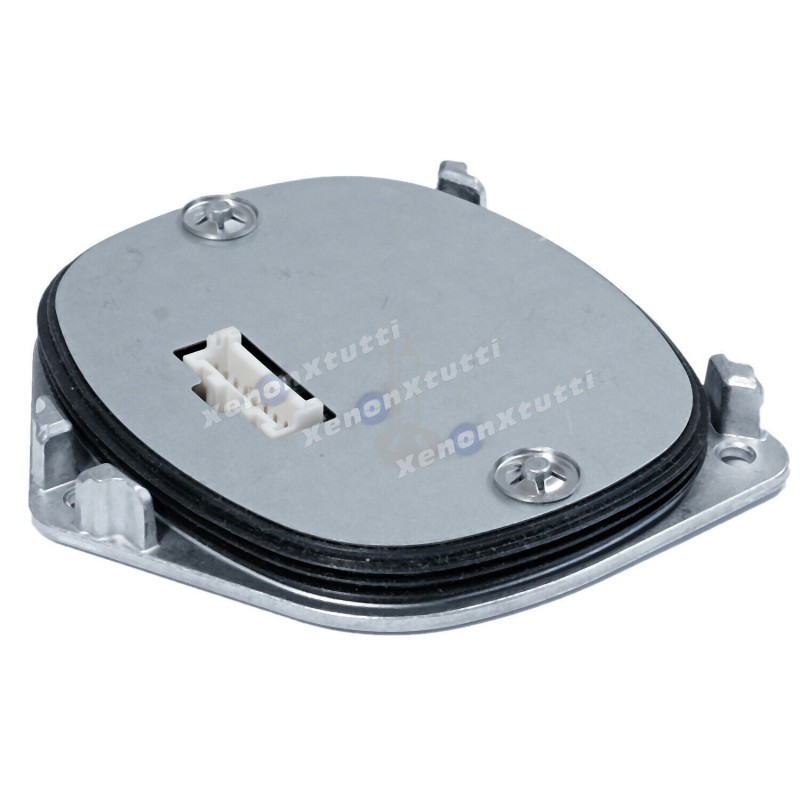

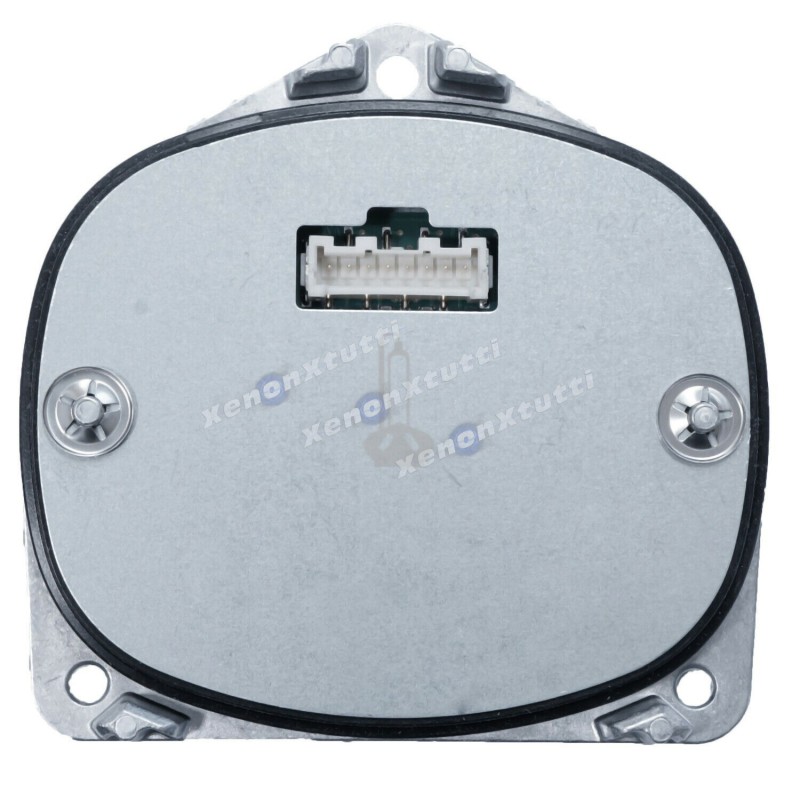

Control unit 10253959E Low beam and High beam which replaces the original model with the following codes:

89092639
4L0941329

Characteristics:

Voltage: 9-16V

Current: 6.5A-8A

Lifespan: 3000 hours

Instantaneous star voltage > = 23 KV

Output voltage waveform: square wave

Frequency: 250 + -10 HZ

Output open circuit protection: = <1S

Output short circuit protection: = <1S

Input reverse voltage protection :: = <1S

Operating temperature: -40-105℃

Suitable for:

For Audi Q7 4L 3.0 TDI 2009 / 06-2012 / 05-2967 ccm, 165 KW, 224 PS

For Audi Q7 4L 3.0 TDI 2011 / 05-2015 / 08-2967 ccm, 180 KW, 245 PS

For Audi Q7 4L 3.0 TDI 2006 / 03-2008 / 05-2967 ccm, 171 KW, 233 PS

for Audi Q7 4L 3.0 TDI 2006 / 03-2010 / 05-2967 ccm, 155 KW, 211 PS

for Audi Q7 4L 3.0 TDI 2007 / 11-2015 / 08-2967 ccm, 176 KW, 240 PS

For Audi Q7 4L 3.0 TDI 2010 / 05-2015 / 08-2967 ccm, 150 KW, 204 PS

For Audi Q7 4L 3.0 TFSI 2011 / 05-2015 / 08 - 2995 ccm, 206 KW, 280 PS

for Audi Q7 4L 3.0 TFSI 2010 / 05-2015 / 08 - 2995 ccm, 200 KW, 272 PS

for Audi Q7 4L 3.0 TFSI 2010 / 05-2015 / 08-2995 ccm, 245 KW, 333 PS

for Audi Q7 4L 3.6 FSI 2006 / 08-2010 / 05 - 3597 ccm, 206 KW, 280 PS

For Audi Q7 4L 4.2 FSI 2006 / 03-2010 / 05-4163 ccm 257 KW 350 PS

For Audi Q7 4L 4.2 TDI 2007 / 03-2009 / 06-4 134 ccm 240 KW 326 PS

For Audi Q7 4L 4.2 TDI 2009/05 -2015 / 08-4 134 ccm 250 KW 340 PS

For Audi Q7 4L 6.0 TDi 2008 / 09-2014 / 05-5934 ccm 368 KW 500 PS
