AFS Stepper Motor NMB PL35L-024-VLE0 Headlight Leveling Actuator Group
AFS Stepper Motor code NMB PL35L-024-VLE0 Headlight Leveling Actuator Group
Side AFS Stepper Motor NMB PL35L-024-VLE0 Headlight Leveling Actuator Group
Previous
Next
AFS Stepper Motor NMB PL35L-024-VLE0 Headlight Leveling Actuator Group
AFS Stepper Motor code NMB PL35L-024-VLE0 Headlight Leveling Actuator Group
Side AFS Stepper Motor NMB PL35L-024-VLE0 Headlight Leveling Actuator Group

AFS Stepper Motor NMB PL35L-024-VLE0 Headlight Leveling Actuator Group

Product Code: PIM#1_7810
€39.00
Questo prodotto è stato acquistato: 5 times
logo

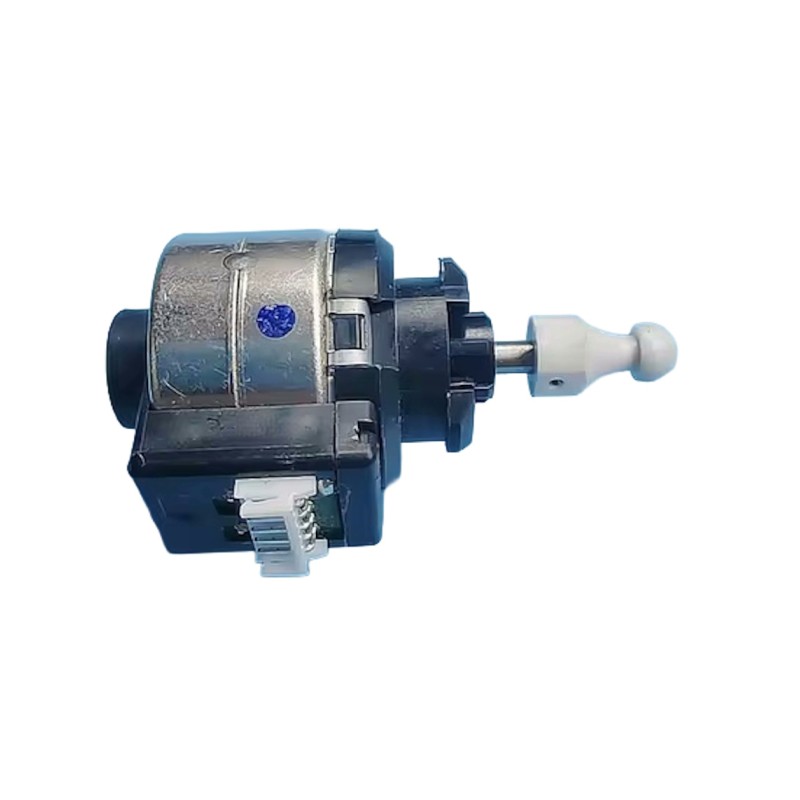

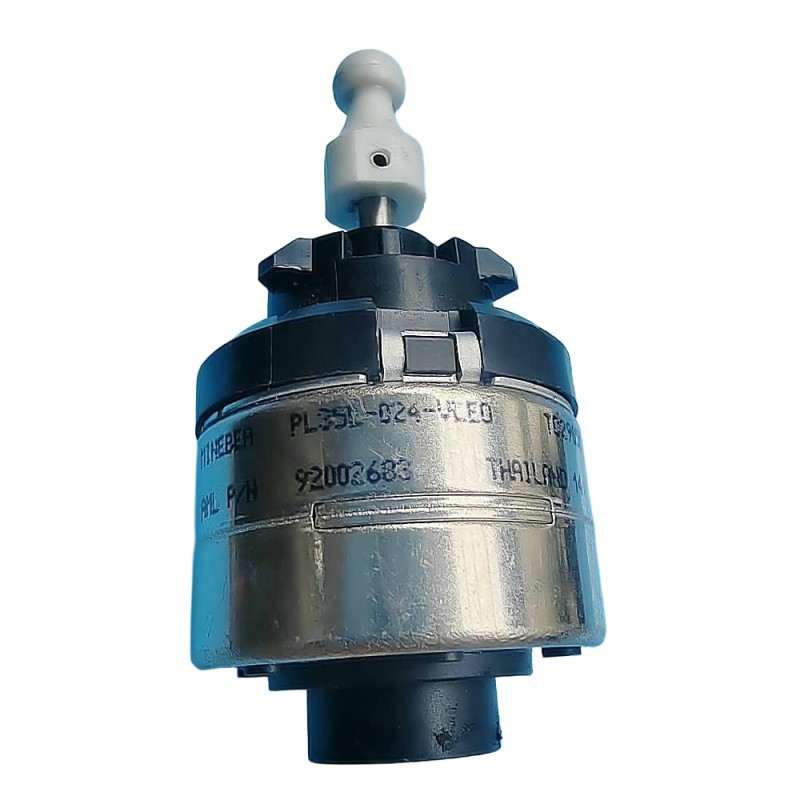

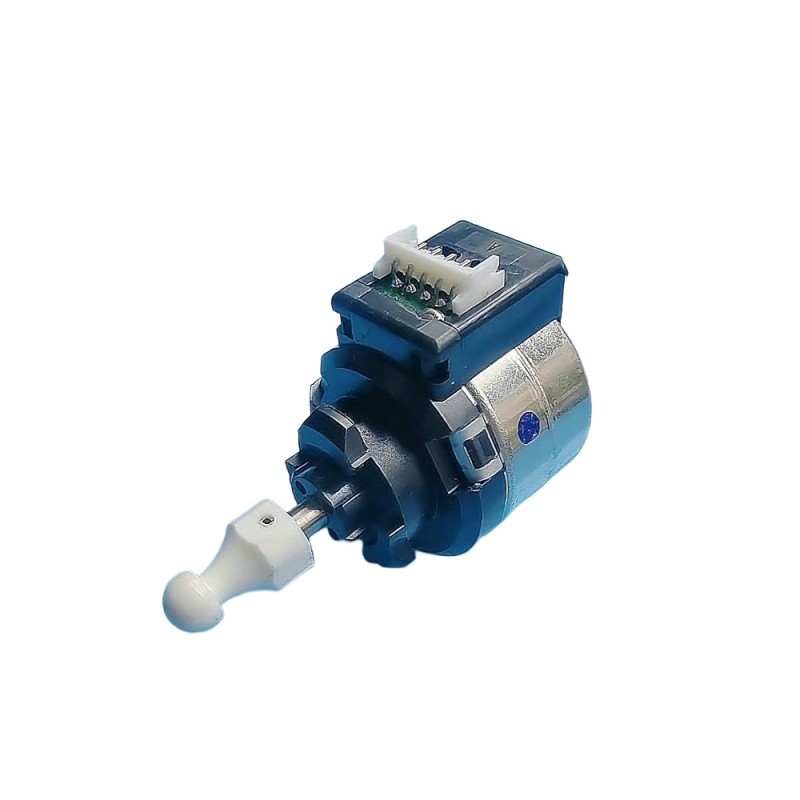

The PL35L-024-VLE0 motor (manufactured by NMB / MinebeaMitsumi) is a linear stepper motor used in automotive headlight assemblies.

  • Height adjustment (leveling)
  • AFS Systems / Curve
  • Compatible Audi, Volkswagen, Porsche, Mercedes Volvo, Renault etc..
AFS Stepper Motor NMB PL35L-024-VLE0 Headlight Leveling Actuator Group
AFS Stepper Motor NMB PL35L-024-VLE0 Headlight Leveling Actuator Group
Add to Cart
  • Xenonpertutti.com guarantees same-day shipping for all orders received and paid for by 2:00 PM!
  • For every order over €99 (excluding shipping costs), you will automatically benefit from free shipping!
  • NB: In islands or remote locations not served daily by couriers, delivery may take up to 3 working days.

Information

Main function

It is used for the electric/automatic adjustment of the headlight leveling (AFS) .

  • Height adjustment (leveling): Moves the dish or projector up and down to correctly direct the light beam based on the load of the car or the slope of the road.

  • AFS / Curve Systems: In some advanced Xenon/LED headlight assemblies, this type of actuator controls the dynamic positioning or directional lens of the headlamp.

Which cars is it installed on?

This specific component (and its production variants of the NMB/Minebea PL35L-024 series) is used in OEM light clusters produced mainly by Valeo or Hella for several European brands of the VAG Group, Mercedes-Benz and others:

  • Audi: A3 (8P), A4 (B6/B7), A6 (C6)

  • Volkswagen: Passat (B6 / 3C), Touareg (7L), Golf V / VI, Scirocco

  • Mercedes-Benz: C-Class (S205 / W205) and other models equipped with Xenon / Adaptive Lighting headlights

  • Porsche: Cayenne (first/second series with Xenon headlights)

  • Other brands: Also present on some Volvo (XC60, V60) and Renault light clusters.

Technical Features

Accessory Type Control Unit
Vehicle Make AUDI BMW MERCEDES-BENZ PORSCHE VOLKSWAGEN VOLVO
Voltage 12v DC
Tipo Veicolo Car
Installation Plug & Play, No Modifications. Direct Connection
Feature Canbus, Nessun Errore Nel Computer di Bordo
Installation Position Left Front Headlight Right Front Headlight
Usage Type Original Component Replacement
Operating Temperature -40 °C +120 °C
IP Rating IP56
Material Aluminium and ABS
Package Contents 1 Piece
Manufacturer Warranty 2 Years
Original OE/OEM Part Number NMB PL35L-024-VLE0
