Aozoom 2.5 inch high beam led headlight kit h4 h1 h7

Transform your headlight into a lenticular one with DRL and high beam functions

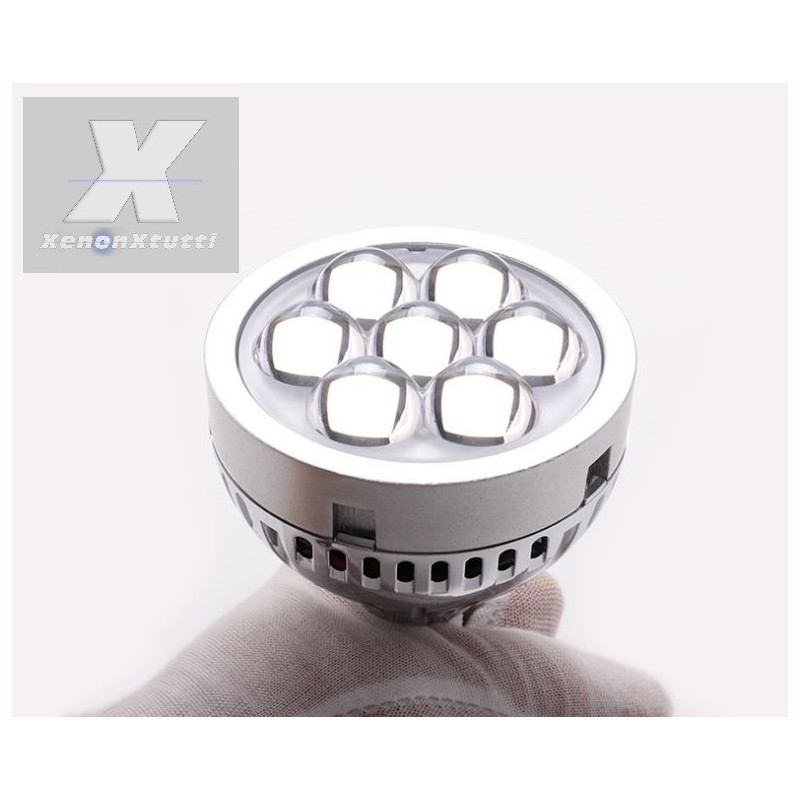

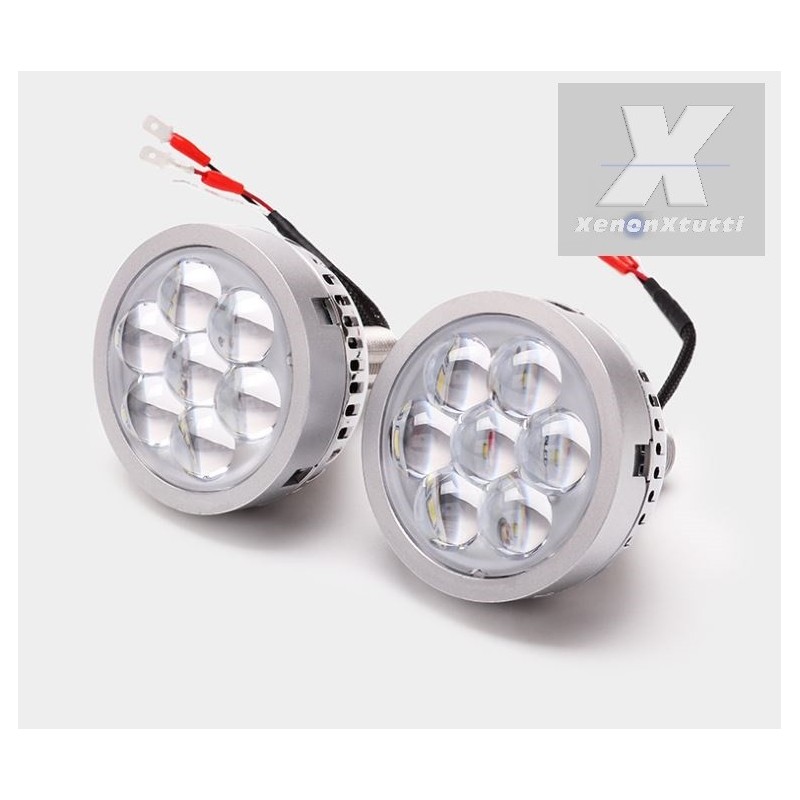

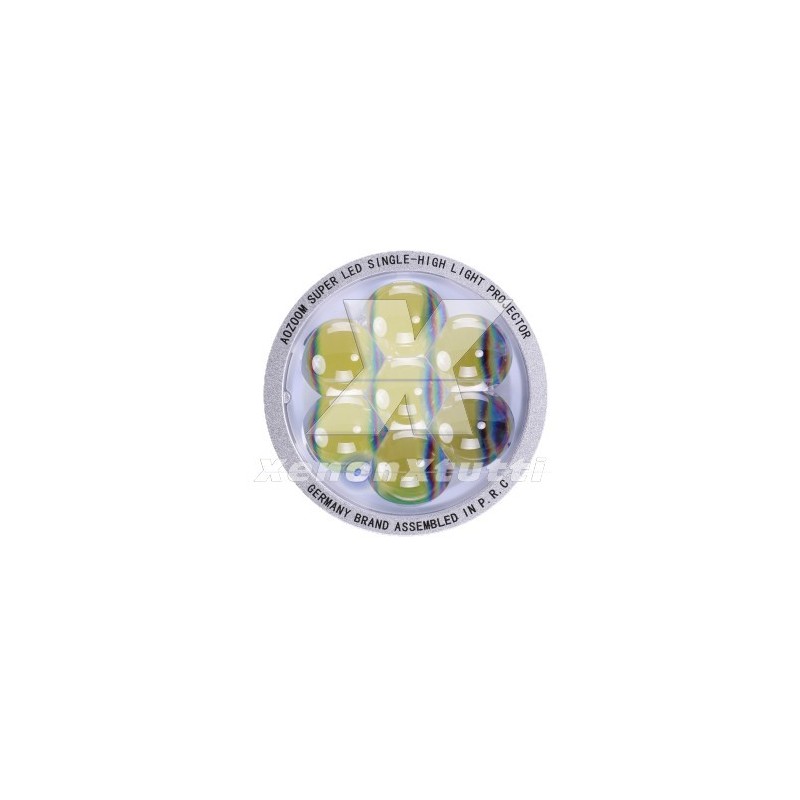

Multi-lens LED beam projector

The design

It comes with a mounting rod and is very easy to install, you can mount a cover that fits a 3-inch lens. Finally, the convex lens module focuses the hotspot directly for high-intensity performance. If you want intensity in the middle of the beam, you'll consider having the maximum intensity hotspot for the high beam.

Cooling

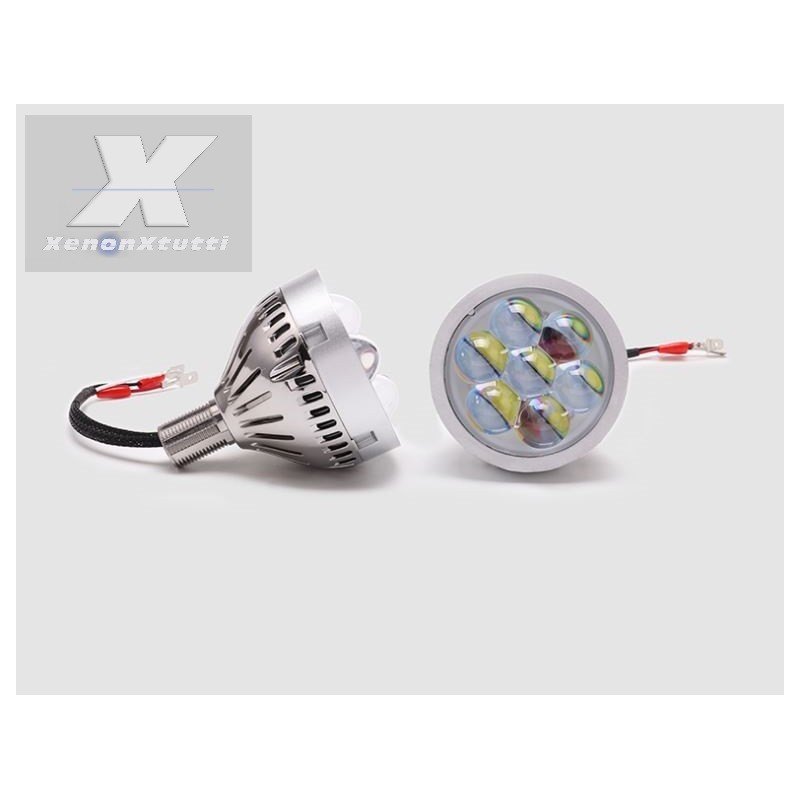

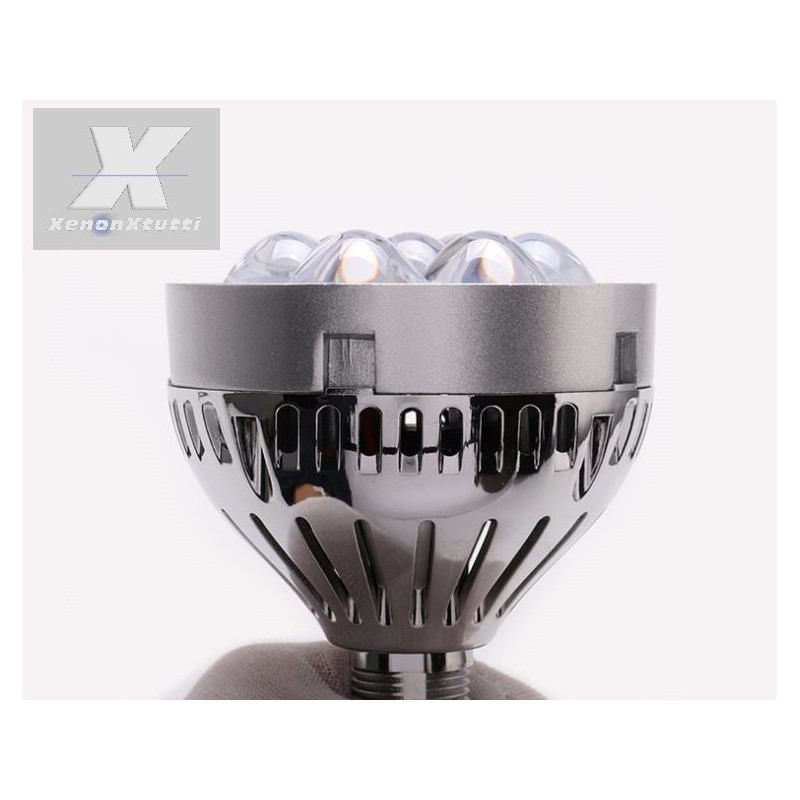

There are two built-in ball-bearing fans behind the LED panel for cooling and to ensure the LEDs operate efficiently within a safe temperature range. The projector's casing is made of 6063 aluminum around the lens and high-temperature resistant PC material on the back.

Compatibility

It can directly fit h7 headlight housing and install into h1, h11, h13, 9005, 9006, 9007 housings with possibly minimal function.

Installation

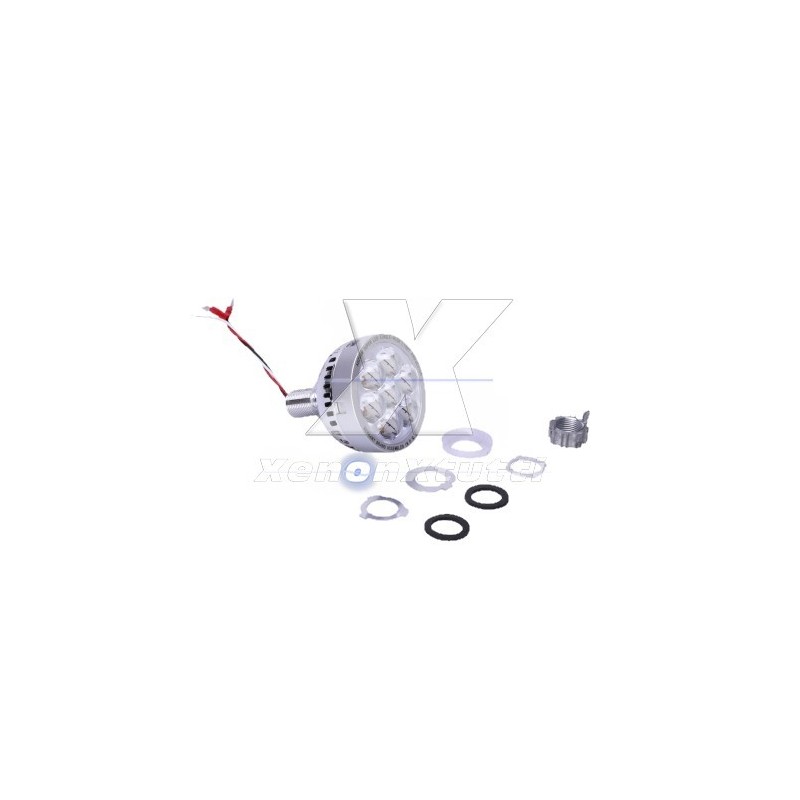

The high-fidelity LED high beam projector is an all-in-one design with an integrated driver. It comes with a mounting bracket; simply open the headlight, insert the projector through the pre-drilled hole in the back of the reflector, and re-seal the headlight.

Size

Depth: 78mm Width: 78mm Height: 92mm Lens Diameter: 3 inches Mounting Shaft Diameter: 19mm

What's included?

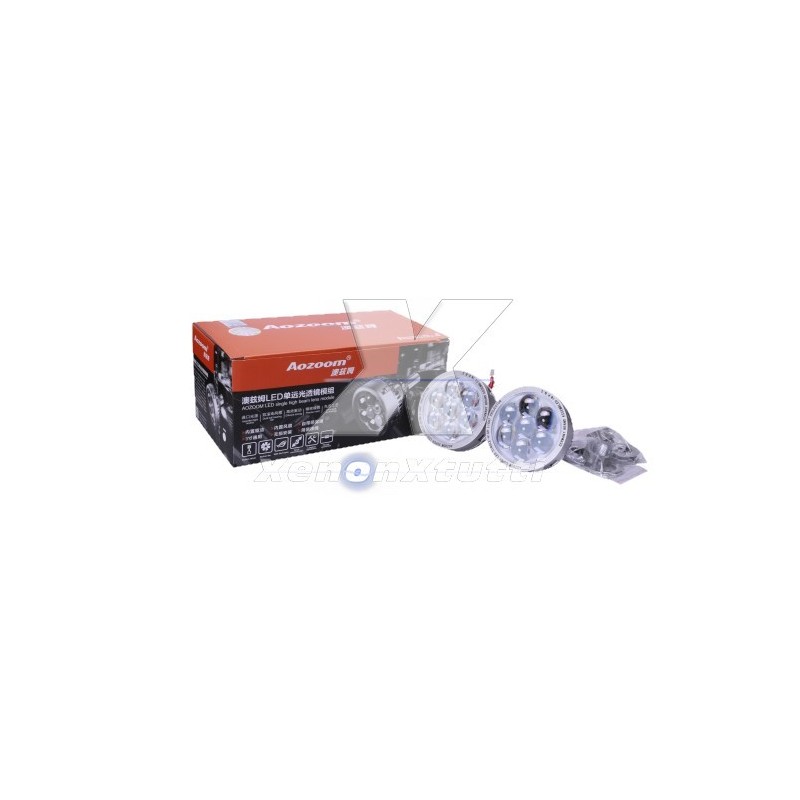

Projectors: 2x Aozoom hi-lens high beam projectors, 2 pcs locking rings
